The Truma Combi D4E Gen 2 provides up to 4 kW of diesel space heating and stores 10 litres of hot water in one compact unit. Use diesel when camping off-grid, switch to 230V electric on campsite hook-up, or select mixed mode to use both. In summer, you can heat water for washing up or showering without warming the living area.

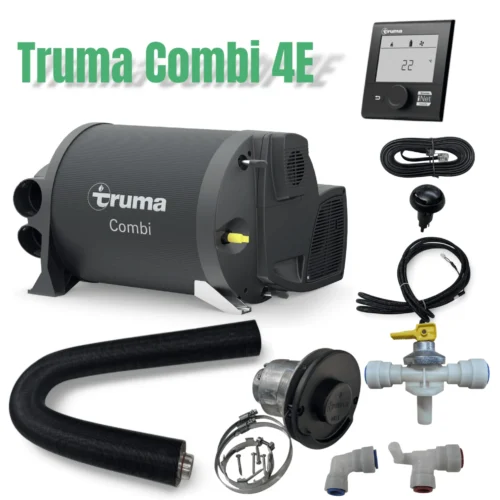

What’s included in the Truma Combi D4E kit?
- Truma Combi D4E Gen 2 diesel and electric air and water heater
- Truma iNet X control panel
- Flue and black external exhaust cowl
Ordering for a new conversion? This kit includes the exhaust flue and cowl. The ducting that carries warm air to different areas of your van is sold separately. Add the Truma Combi 65 mm warm-air ducting kit if you also need the ducting, clips and vents.
For a custom layout, you can buy 65 mm warm-air ducting, ducting clips and adjustable outlet vents individually.
Using the D4E off-grid and on campsite hook-up
Off-grid: The diesel burner supplies between 1 and 4 kW of heat. Four warm-air outlets on the heater let your installer distribute heat around the van. You can also use the space heating when the water tank is empty.
On hook-up: Choose the 900 W or 1,800 W electric setting using the iNet X panel. These draw approximately 3.9 A and 7.8 A respectively. The lower setting is useful on pitches with a limited electrical supply. Mixed mode uses diesel and mains electricity together. The heater also requires a 12V supply for operation.
Truma Combi D4E Gen 2 specifications
| Diesel heating output | 1, 2, 3 or 4 kW |
|---|---|
| Electric heating output | 900 W or 1,800 W on 230V hook-up |
| Diesel consumption | 0.1–0.4 litres per hour, depending on output |
| Hot water capacity | 10-litre stainless steel tank |
| Water-only heating time | Approximately 24 minutes from 15°C to 60°C |
| Heater dimensions (L × W × H) | 510 × 450 × 300 mm |
| Minimum installation space (L × W × H) | 540 × 500 × 350 mm, with additional space for connections and the drain valve |
| Heater weight | 15.6 kg without peripherals |
Choosing between the Truma D4E and D6E
Both heaters have a 10-litre hot water tank. The main difference is diesel heating output: the D4E delivers up to 4 kW, while the Truma Combi D6E Gen 2 delivers up to 6 kW. If you’re unsure which to choose, ask your installer to assess your van’s size, insulation and the temperatures you expect to camp in.
Unsure whether you need 4 kW or 6 kW? Read our Truma Combi D4E vs D6E buying guide.
Installation, delivery and collection
Use the minimum installation dimensions above when planning your furniture layout. Allow room for the flue, warm-air ducting, water connections and drain valve. Have the heater fitted by a qualified engineer and keep your installation invoice, as Truma may request proof of fitting for a warranty claim. See Truma’s official Combi D4E Gen 2 specifications for further details.
Choose delivery or collection when ordering. Collection from Midland Leisure Supplies in Tamworth is by appointment. This heater may be delivered on a pallet. If your address cannot accept pallet deliveries, please contact us before ordering so we can discuss the options.
