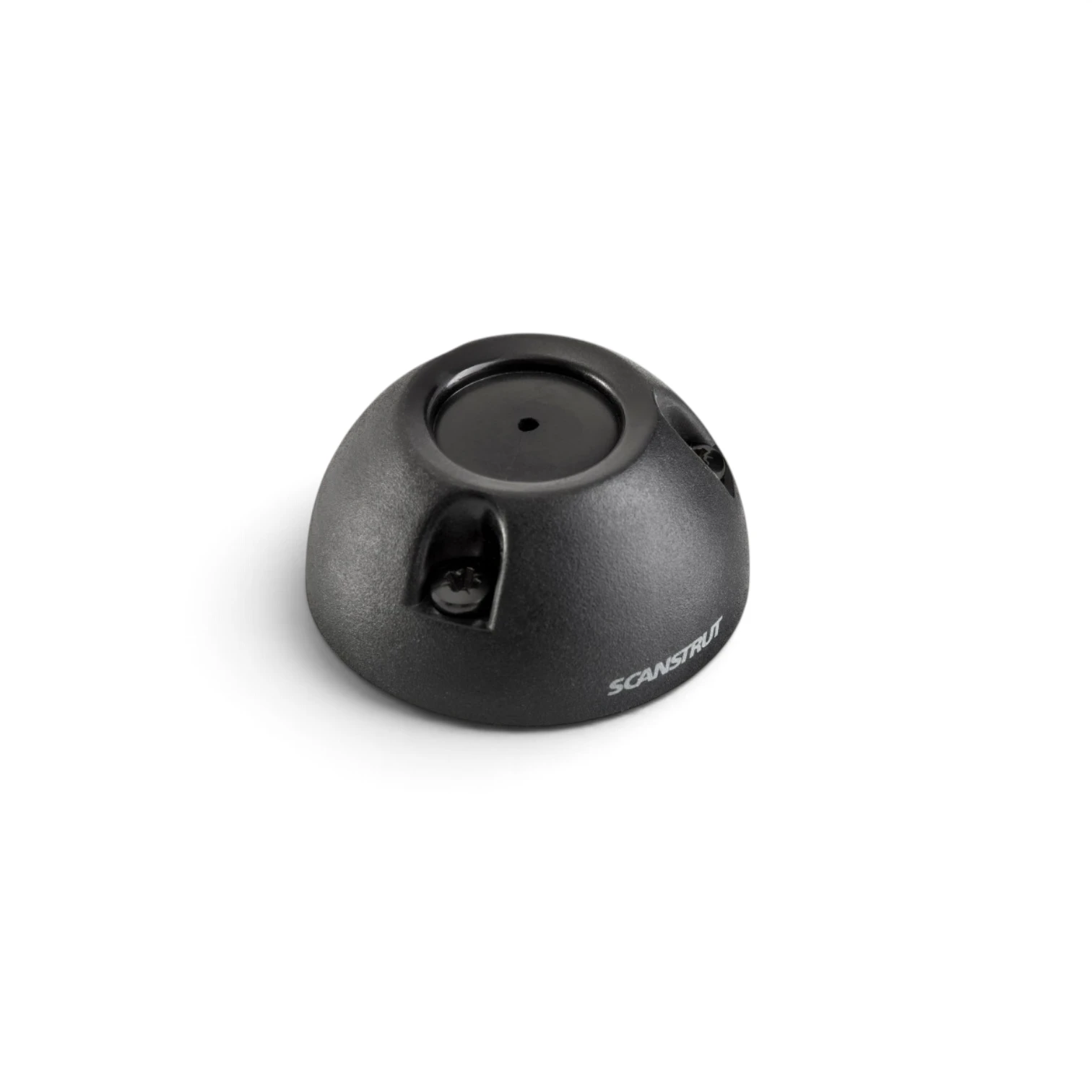

Scanstrut DS16-P-BLK Vertical Cable Seal – Black 2-8mm

Scanstrut DS16-P-BLK Vertical Cable Seal – Black

The Scanstrut DS16-P-BLK Vertical Cable Seal provides a secure, watertight solution for routing electrical cables through decks, roofs and exterior panels. Designed for cables measuring 2–8 mm and pre-fitted connectors up to 16 mm in diameter, it is ideal for marine, campervan, solar, antenna and other outdoor installations.

Its compact, dome-shaped housing is manufactured from UV-stable, high-impact plastic for enhanced durability and impact resistance. An IP68-rated seal, waterproof 3M base gasket and corrosion-resistant 316 stainless-steel fixings help protect cable entry points from water and harsh outdoor conditions.

Captive nuts make assembly simple and allow the seal to be removed and reinstalled reliably. Pre-drilled, blank and split bung options provide installation flexibility and allow many cables to be fitted without removing their existing connectors.

Key Features

• Suitable for cables from 2–8 mm
• Accommodates connectors up to 16 mm in diameter
• IP68-rated watertight protection
• UV-stable, high-impact plastic construction
• Compact, impact-resistant dome profile
• Captive nuts for easy, repeatable installation

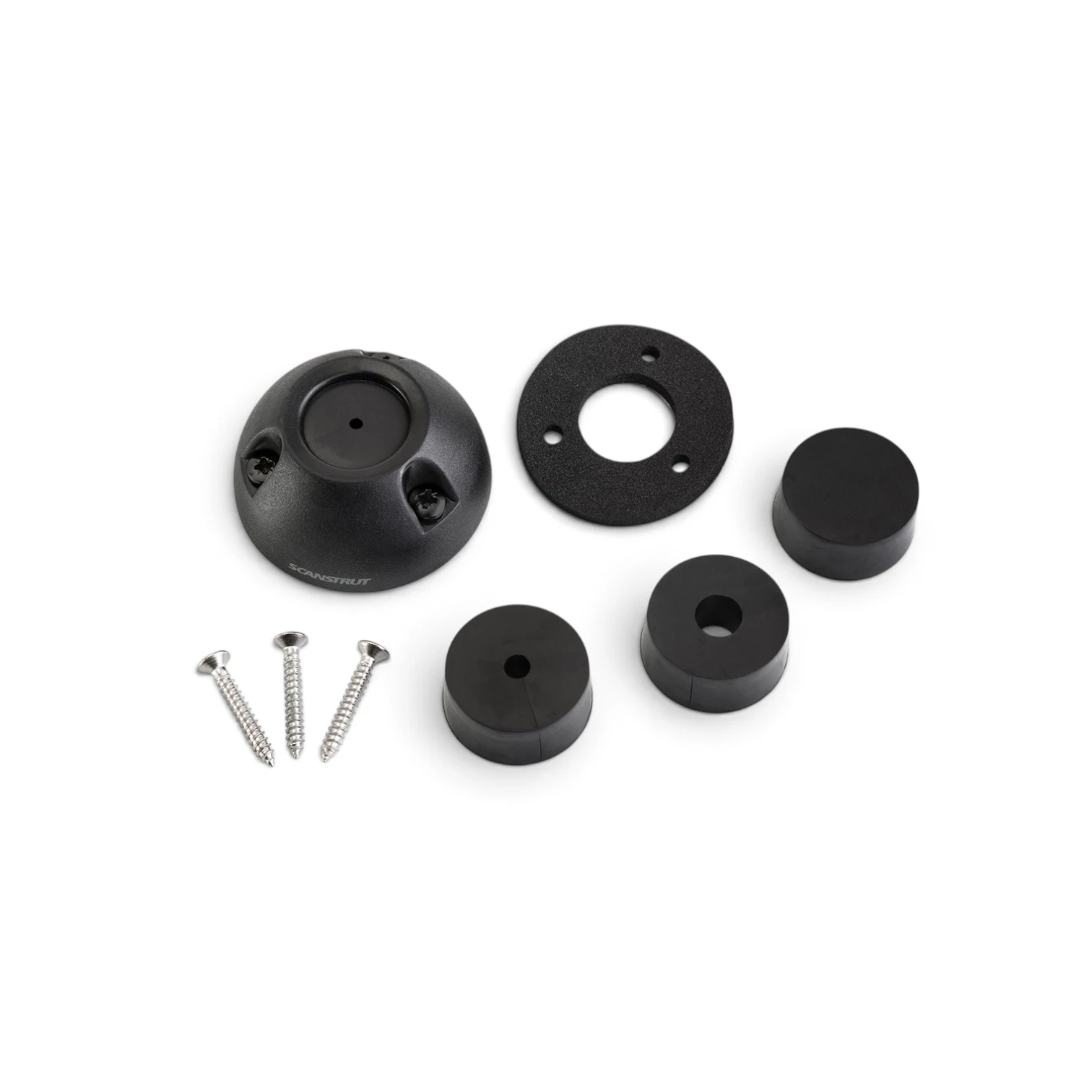

• Includes pre-drilled, self-drill and split bung options
• Supplied with 316 stainless-steel fixings and waterproof 3M gasket
• Black finish
• Dimensions: 39 mm diameter × 19 mm high
• Designed for installation above the waterline
• Three-year manufacturer warranty
