Scanstrut – Horizontal Double Cable Seal – 5-6mm – GREY DS-HD6 GREY VERSION

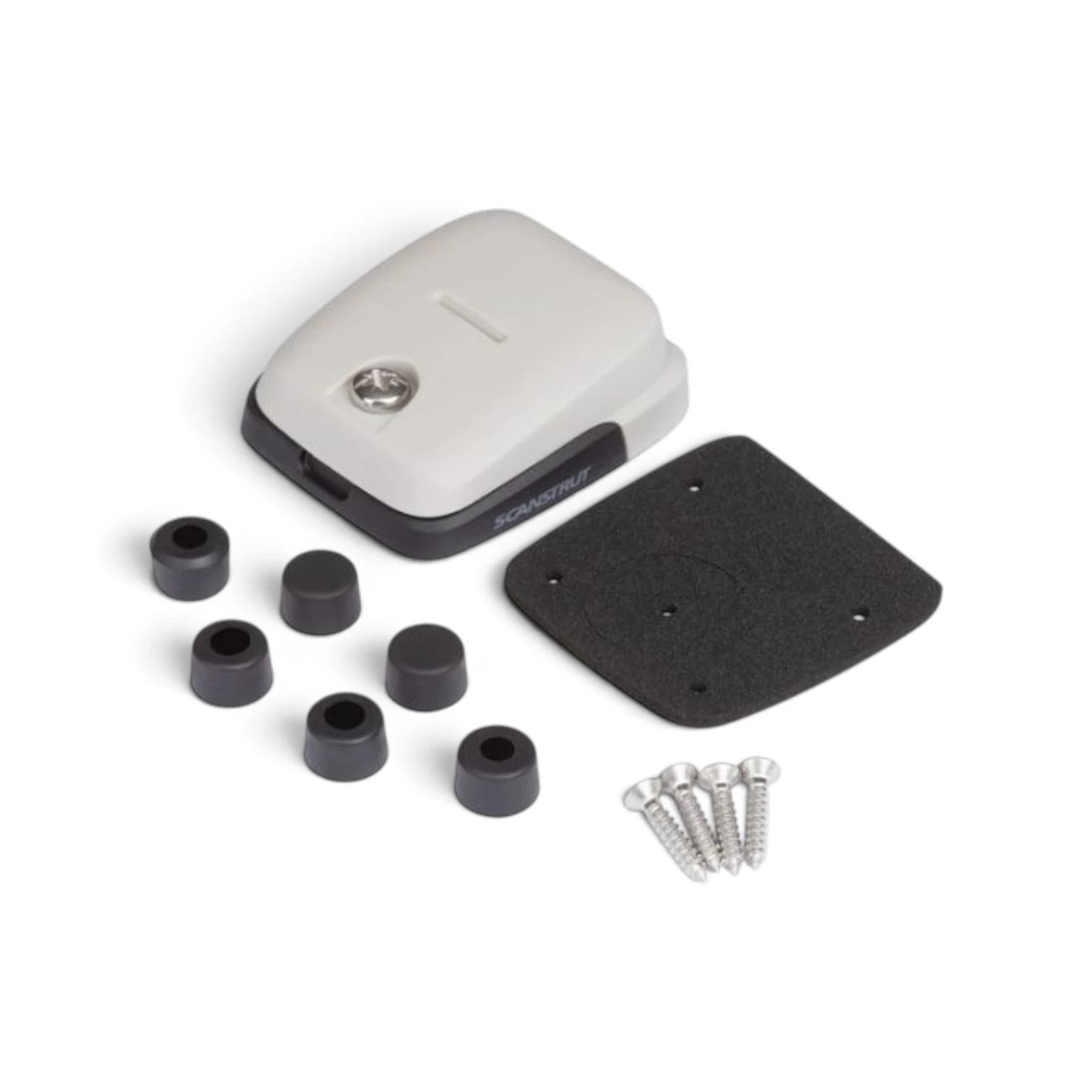

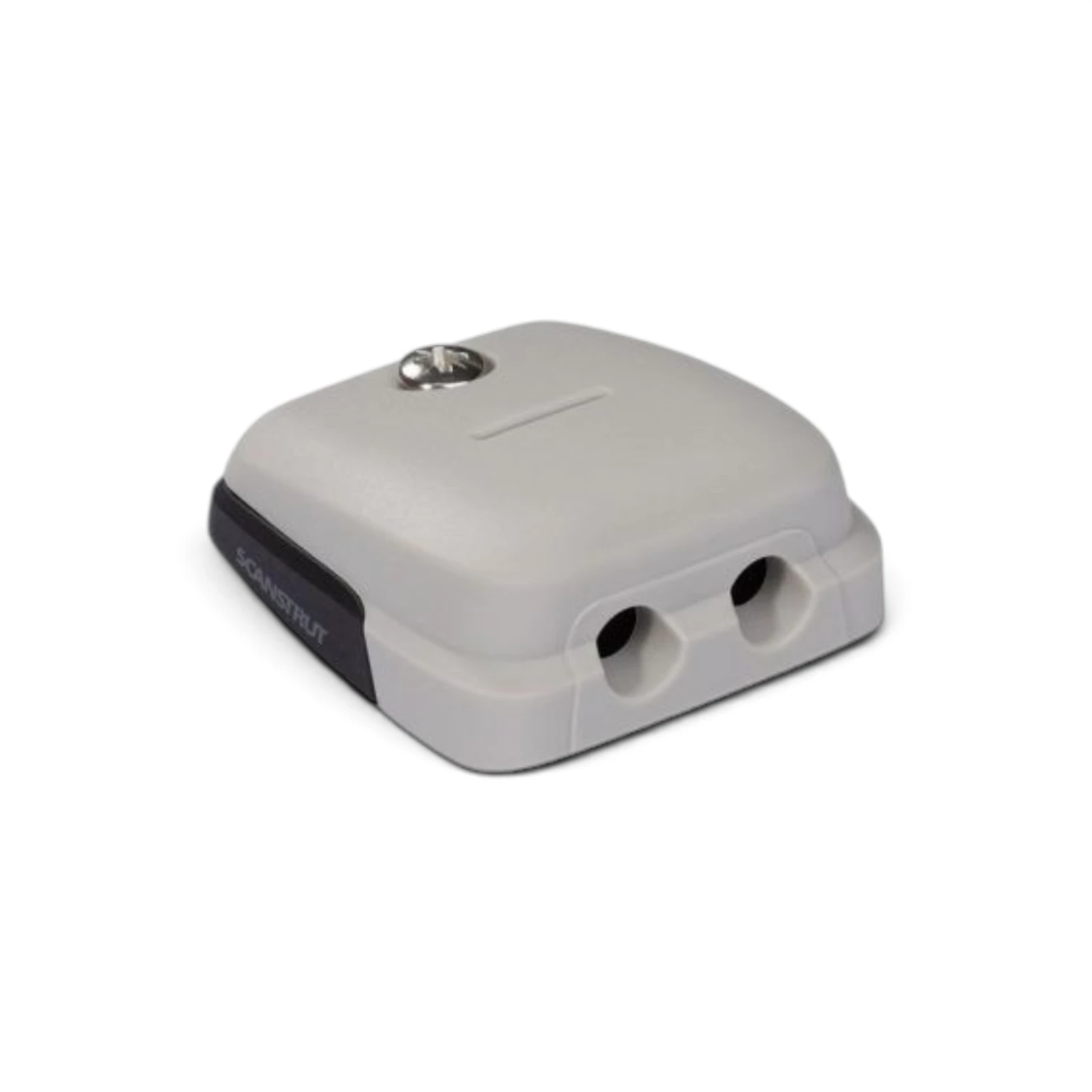

Scanstrut Double Horizontal Cable Seal – DS-HD6

Create a neat, secure and watertight cable entry with the Scanstrut DS-HD6 Double Horizontal Cable Seal. Designed specifically for routing two solar-panel cables from outside to inside, its compact footprint makes it ideal for installations where space is limited.

The low-profile, impact-resistant housing provides additional protection against water and accidental damage, while the IP68-rated sealing system helps keep the cable entry protected in demanding marine and outdoor environments. Its marine-grade plastic construction is UV-stable and hard-wearing for reliable long-term performance.

Supplied with 5mm and 6mm cable bungs, the DS-HD6 accommodates two cables measuring 5–6mm in diameter. Captive nuts simplify assembly and allow the seal to be reopened for future maintenance, while the included waterproof 3M gasket provides a clean installation without messy sealant around the cable bungs.

Key Features

• Designed for routing two solar-panel cables
• Suitable for two cables measuring 5–6mm in diameter
• Includes two 5mm and two 6mm cable bungs
• IP68-rated watertight seal
• Compact, low-profile construction
• Strong, impact-resistant housing
• Marine-grade, UV-stable materials
• Captive nuts for quick and reliable assembly
• Suitable for installation through wood, metal and GRP
• Supplied with marine-grade 316 stainless-steel fixings
• Includes a waterproof 3M base gasket
• No messy sealant required around the cable bungs
• Dimensions: 63mm long × 54mm wide × 22mm high
• Three-year manufacturer’s warranty

Please note: Select the cable bung that most closely matches the diameter of each cable to ensure an effective watertight seal.
