Victron Energy Phoenix Inverter Smart 12V 2000VA with Bluetooth- PIN122201000

Victron Energy Phoenix Inverter Smart 12V 2000VA with Bluetooth- PIN122201000

Name: Victron Energy Phoenix Inverter Smart 12V 2000VA with Bluetooth- PIN122201000
Brand: Victron Energy
SKU: 21-PIN122201000
Price: 575 GBP
Availability: InStock

SKU 21-PIN122201000 Category Inverters Brand: Victron Energy

Original price was: £575.00.Current price is: £524.90. Inc Vat

In stock

Description

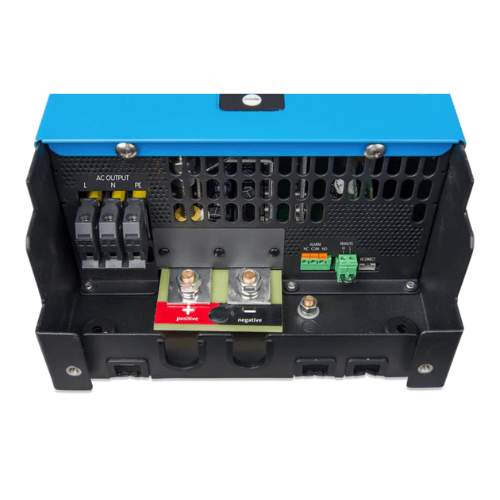

The Phoenix Inverter Smart is an efficient and reliable inverter. Built on our proven and field tested Phoenix inverter platform, it now comes with a new slimmer design and full metal casing. Models are available in 1600VA, 2000VA, 3000VA and 5000VA for 12, 24 or 48V systems. Max constant power 2000VA.Pure sine wave inverter.For 12V systems. 12V DC Power to 230V AC Power. Monitor the status of your system remotely via Bluetooth.It’s powerful enough to supply most common plug in appliances in your car, boat, caravan or home. A toroidal transformer provides a high peak power surge capacity, stable voltage, frequency and high quality sine-wave.Installation is simpler than ever before with terminals now more accessible for the installer, enabling a more professional finish.Bluetooth is built-in, and makes setting up your high power inverter easier than ever before. Configure alarms, alarm relay, voltage cut-off, output voltage, frequency, eco-mode and more, all from within VictronConnect.FeaturesBluetooth built-in: fully configurable with a tablet or smartphone

Low battery voltage alarm
Low battery voltage cut-off and restart levels
Dynamic cut-off: load dependent cut-off level
Output voltage: 210 – 245V
Frequency: 50 Hz or 60 Hz
ECO mode on/off and ECO mode sense level
Alarm relay

Monitoring:

In- and output voltage, load and alarms

VE. Direct communication portThe VE. Direct port can be connected to a computer (VE. Direct to USB interface cable needed) to configure and monitor the same parameters.Proven reliabilityThe full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.High start-up powerNeeded to start loads such as power converters for LED lamps, halogen lamps or electric tools.ECO modeWhen in ECO mode, the inverter will switch to standby when the load decreases below a preset value. Once in standby the inverter will switch on for a short period every 2,5 seconds (adjustable). If the load exceeds the preset level, the inverter will remain on.Remote on/offA remote on/off switch or relay contact can be connected to a two pole connector. Alternatively, the H terminal (left) of the two pole connector can be switched to battery plus, or the L terminal (right) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example).To transfer the load to another AC source: the automatic transfer switchFor our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption. Alternatively use a MultiPlus with built-in transfer switch.
