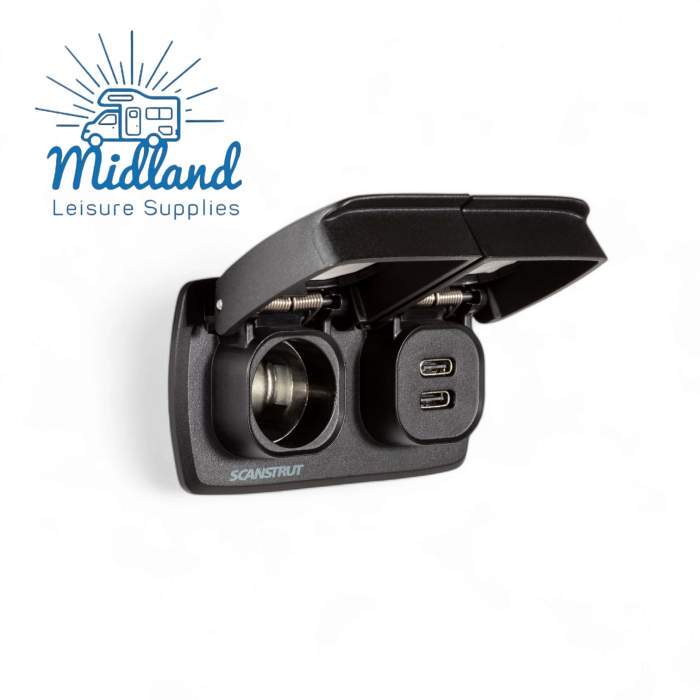

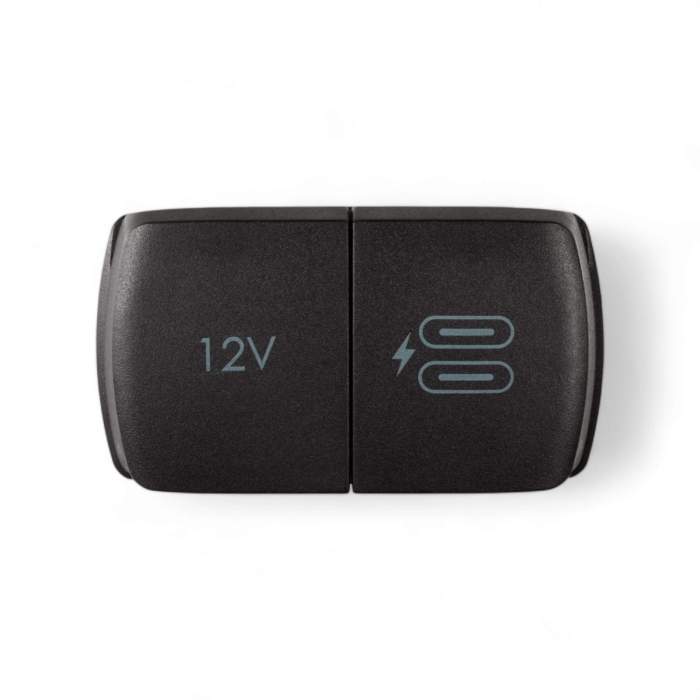

Dual USB-C & 12V power socket. ROKK IS A LEADING BRAND IN THE RV/ BOATING INDUSRTY AND OWNED BY SCANSTRUTCombing features of our high-power Flip Pro Max and 12V Power Sockets into a beautiful multi-power solution.When not in use, the spring-loaded caps remain tightly closed, protecting the ports from the elements.Universal• Universal fit for any USB-C connectors• Fast charge (60W max) up to 2 devices at a timeMarine Ready• IPX4 waterproof with the cover closed• UV resistant• 316 stainless hinge and springElectrical Information• 120 -150W max power 12V system only• Input voltage: 10-30V DC (12/24V System)• Input current Max: 6A (10A fuse recommended)Key InformationTo maximize charge performance, use the cable supplied with your tablet, phone etc. (C to C, or C-lightning) Phones charge at the same speed on either a12 or 24V system, but a 24V system must be used to get the full 60W output suitable for laptops.
- USB-C power output: 60W max on 24V system, 36W max on 12V system
- USB-C input voltage: 10-32V DC
- USB-C input current: 6A max.
- 12V socket power output:150W max. (12V DC)
- 12V socket input voltage: 10-15V DC
- 12V socket input current: 10A max.
- Standby power draw: 0.01W

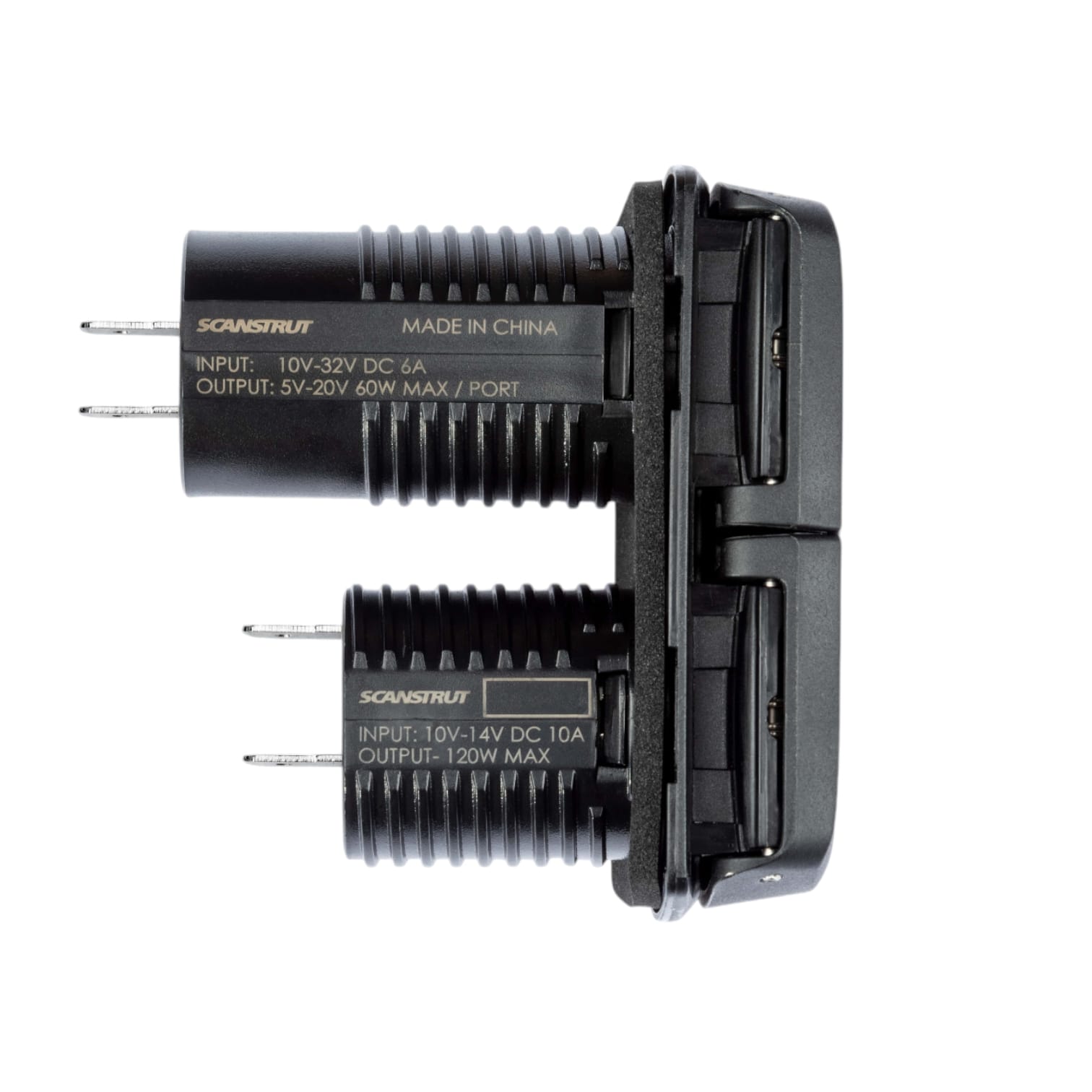

- Power connection: 4 x 6.3mm blade terminals
- Overall dims (without bezel – lid open): 80 (W) x 79.7 (L) x 44.1 (H) mm
- Protrusion from mounting surface (lid closed): 20mm approx.
- Protrusion from mounting surface (lid open): 47mm approx.
- Depth required behind mounting surface: 80mm approx.
- Bezel dims: 107.1 (L) x 51.0 (H) mm
- Panel hole size: 32mm
- Max/min panel thickness: 25/3 mm
- Weight: 0.13Kg
- Protection rating: IPX4 front (with lid closed)
Part Number: SC-MULTI-F1
Bar Code: 5060114798298
