Description
Black exhaust cowl vent

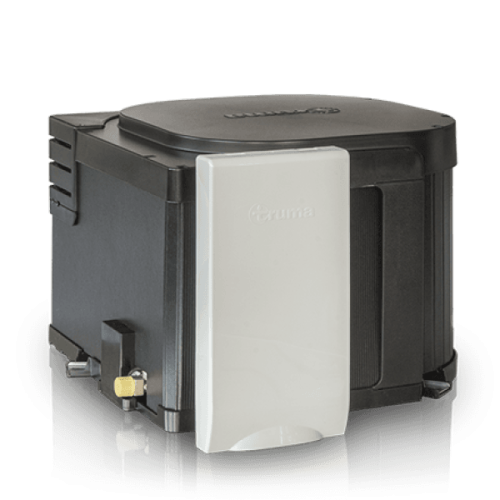

Truma Combi 4DE Combination Boiler KIT including flue – does not include ducting clips or vents but we do sell as a kit
The Truma Combi D4E Diesel air space and water heater complete kit includes all the parts you need to install and operate the unit itself. Featuring all the benefits of the standard Truma Combi range but with a diesel heater instead of gas alongside an electric element, the Combi D4E is not only effective but also provides increased availability of fuel more suited to those traveling further afield.
Lightweight and compact
Although the Combi D4E is able to operate as both a hot water boiler and space heater, it is relatively small and lightweight. With an inbuilt 10 litre hot water storage tank, the Truma D4E is able to provide enough hot water for everyday tasks as well as heating your living space.
Flexibility to suit your needs
The Combi D4E has 4x heated air outlets allowing for effective heating of your living space. With its digital Truma I-net control panel the Combi D4E also allows you complete control over function at any moment, giving you easily adjustable options between hot air, hot water or even having both at once.
230V mains electric heater
The Combi D4E is able to operate on 230V mains in addition to the diesel heater. This not only allows you to heat water and living space air using diesel, but alternatively you can use the electric element when hook-up is available or diesel is unavailable, and you can even use both diesel and electric together for increased performance and efficiency.
The Truma Combi D4E complete kit includes:
- Truma Combi D4E diesel and electric heater unit
- Truma I-net digital control panel
- John Guest water kit
- 6 metres control panel cable
- Truma Combi diesel exhaust/flue and air inlet kit
- Japan Solderless Terminal electrical ends
- Truma installation and operation instructions
New installations will require warm air distribution ducting. Sensor Cable not included – a standard 2 core speaker cable can be used.
Truma iNet control panel
The Combi D4E complete kit from Truma includes the innovative I-Net digital control panel. In addition, if you have a Truma air conditioning unit, the control panel can automatically co-ordinate the heater and air conditioning to ensure your living space maintains a comfortable environment (please note a TIN distributor is required to connect 2 appliances to the iNet X control panel)
Please note that ducting is NOT included with the Truma Combi D6E but can be purchased here
D6E Heater Technical Specifications
Combi D4E | |
Dimensions (L x W x H) | 525 x 450 x 300 mm |
Installation dimensions (L x W x H) | 540 x 500 x 350mm* |
Unit Weight (without water) | 16.8kg |
Heating time (from 15°C to 60°C) (Water only) | Approx. 20min. |
Heating time (from 15°C to 60°C) (Heater + Water) | Approx. 80min. |
Rated thermal output in Watts (Diesel) | Upto 4000 |
Rated thermal output in Watts (Electric) | 900 |
Rated thermal output in Watts (Diesel & Electric Comb.) | 3800 |
Fuel consumption | 100 – 400ml/h |
Water capacity | 10 litres |
Air flow rate | 287 m3/h |
Power consumption (at 230V) | 3.9A / 7.8A |
Power consumption (at 12V) | Heating up boiler 1.8A up to temp max. of 4.0A |
Water pressure | Max. 2.8 Bar |
**Please note in addition to the installation dimensions, extra space must be provided as appropriate for the gas and water connections as well as the drain valve.
- Please note for warranty and safety issues all appliances must be installed by a qualified engineer. In the event of a warranty claim Truma may insist on proof of installation by a qualified engineer, failure may result in warranty claims being rejected.
PLEASE NOTE: we may have to ship this via a pallet delivery, if you cannot receive a pallet you will need to email us on purchase or attach not in checkout, failure to do so may result in the buyer incurring extra transport fees if they have to take off a pallet.
