Description

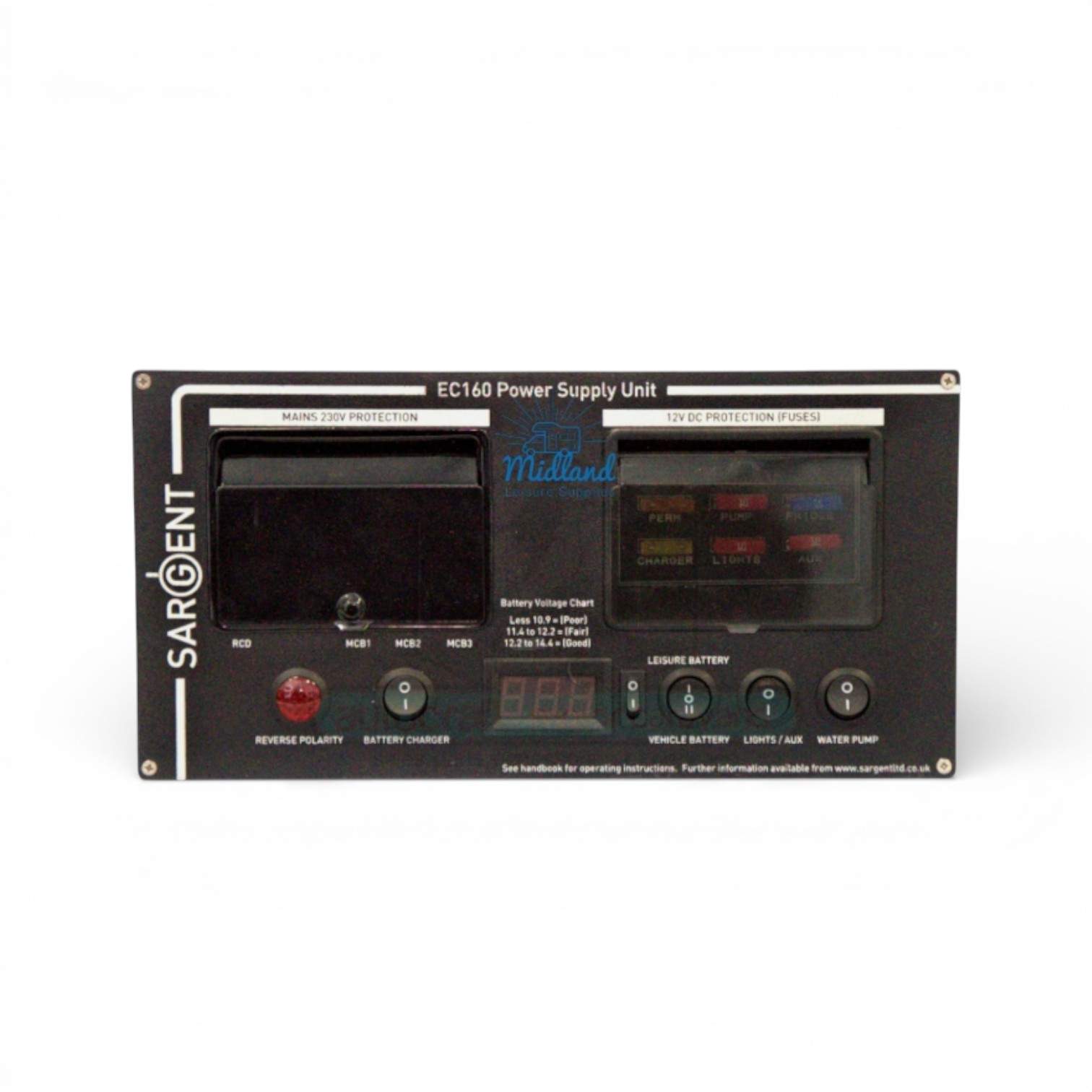

Sargent EC160 power supply unit in horizontal Black
The EC160 Power Supply Unit features a 230v AC 16a input via a pre-wired lead, RCD protection and 3 x 10a MCB outputs via quick fit connector blocks. This unit is especially designed for caravan, motorhome, camper van and horsebox installations and is particularly ideal for T2, T25, T4 and T5 campers.
- 150w 13.9v battery charger with on/off switch and 5 x 10a 12v fused outputs (auxiliary/lights and pump are switched) via screwed terminal blocks.
- Built in to the unit are: split charge relay, EMC isolation relay, digital voltmeter with on/off switch and a reverse polarity indicator.
This Sargent EC160 Power Supply Unit is the ideal unit for a self-build campervan which provides both 12c and 240v power supplies. It is easy to install and operate courtesy of Sargent’s simple design.
230v AC:
- 16A input via wired 2m lead
- RCD protected with reverse polarity indication
- Built in 150w 13.8v fixed voltage battery charger with on/off switch
- 3 x 10A MCB outputs via quick fit connector blocks
12v DC
- 2 x 15A battery inputs via screw terminal block
- 5 x outputs via screw terminal black
- Pump output via pump switch & 5A fuse
- Lights output via lights / Aux switch & Aux 10A fuse
- Permanent output via 5A fuse
- Fridge output VA 15A fuse
- Built in split charge relay (configurable)
- Built in EMC isolation relay (configurable)
- Digital voltmeter with on/off switch
- Dimensions: Face Panel: 300 x 150mm. Panel Cut Out 285 x 132mm x Depth 200mm
