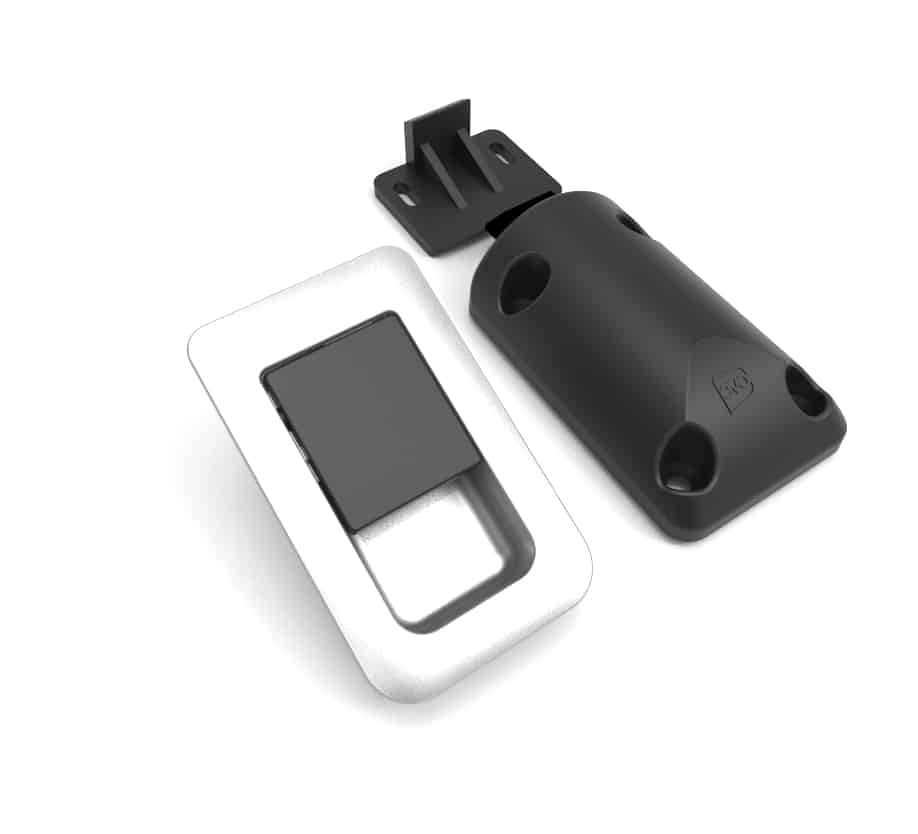

EVO Design Satin Chrome Black inner flush door locker catch button

1x Satin Chrome Black inner

The EVOmatic catch is a new self locking door catch designed for leisure vehicles. A modern design with practical features

Features:

•Auto latching design

•Works with any panel thickness between 12mm – 18 mm

•Available in different finishes

•Flush surface modern design

•Includes dual position striking plate with adjustment aids installation.

•Adjustable fit design with + or – 5mm travel for precision installation.

•Screws not included – screw length changes depending on ply thickness.

– use 3.5 x 12mm screws when mounting to 12mm ply

– use 3.5 x 15mm screws when mounting to 15mm ply

– use 3.5 x 18mm screws when mounting to 18mm ply

To prevent the latch from sticking do not over tighten screws on the back plate

Kit includes

1x Push button catch

1 x button rear

1 x striking plate

Other colours available
