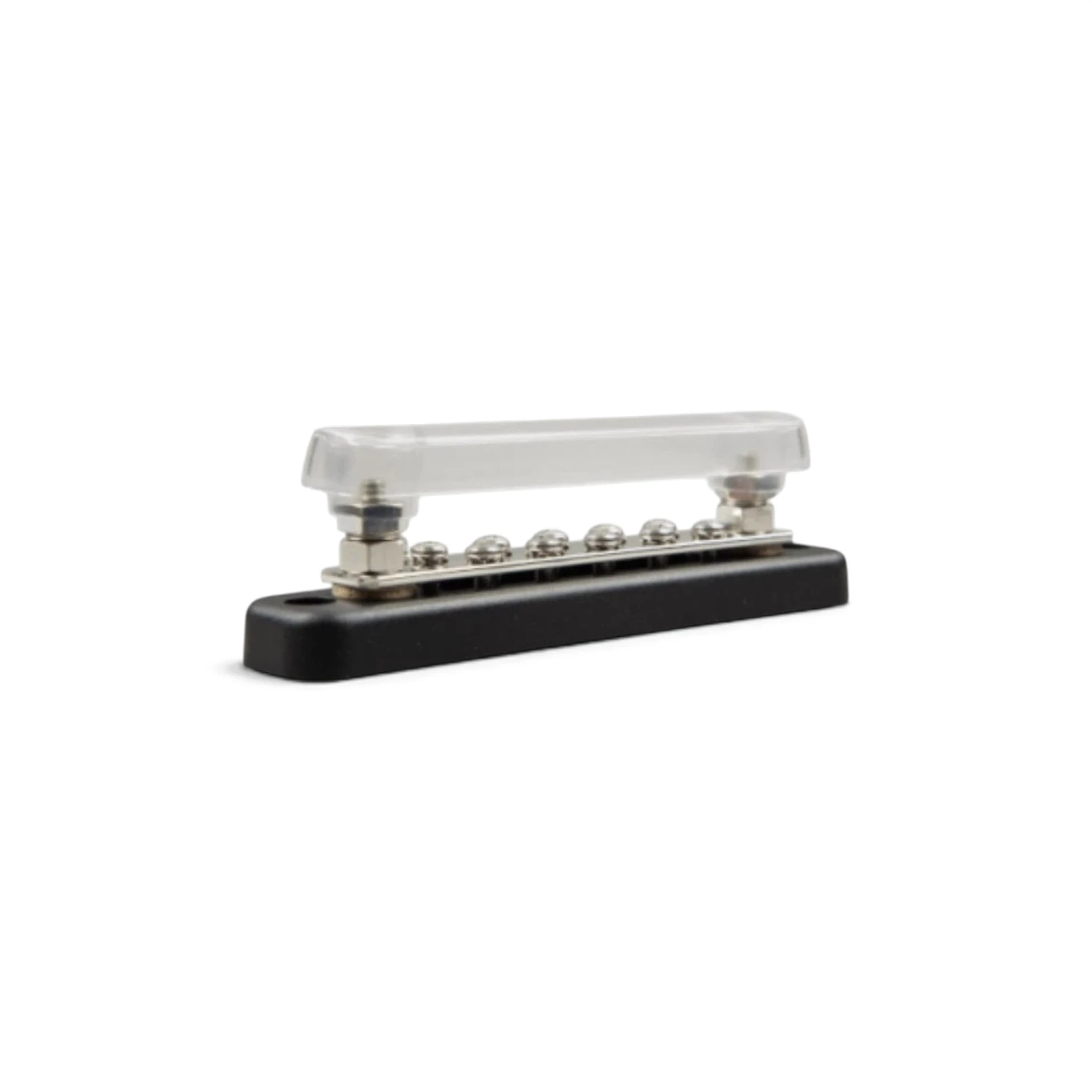

Victron Energy Busbar 150A 2P with 10 Screws +Cover – VBB115021020
SKU
£13.60 Inc Vat
In stock
In stock
The Victron Energy Busbar 150A 2P with 10 Screws + Cover (VBB115021020) is a compact, high-current distribution busbar designed to provide secure connection points for batteries and DC equipment. It is ideal for organising and distributing power in marine, motorhome, caravan, solar, off-grid and other DC electrical installations.
Rated for a maximum current of 150A and maximum voltage of 70V DC, the busbar features 10 screw connection points together with two larger terminal studs. A removable clear protective cover helps protect the terminals against accidental contact while keeping the installation neat and accessible.
The busbar uses a tin-plated copper strip, stainless-steel terminals and a durable ABS base, providing a robust solution for dependable DC power distribution.
Key Features
- 150A maximum current rating
- 70V DC maximum voltage
- 2-pole busbar
- 10 screw connection points
- Two ¼-inch / 6.35mm terminal studs
- Tin-plated copper busbar
- Stainless-steel terminals
- Removable clear protective cover
- Recommended terminal torque: 7 Nm
- Dimensions with cover: 45 × 152.4 × 32mm
- Suitable for battery and DC power distribution systems
- Ideal for marine, motorhome, caravan, solar and off-grid installations
- Manufacturer: Victron Energy
- Manufacturer Part Number: VBB115021020
