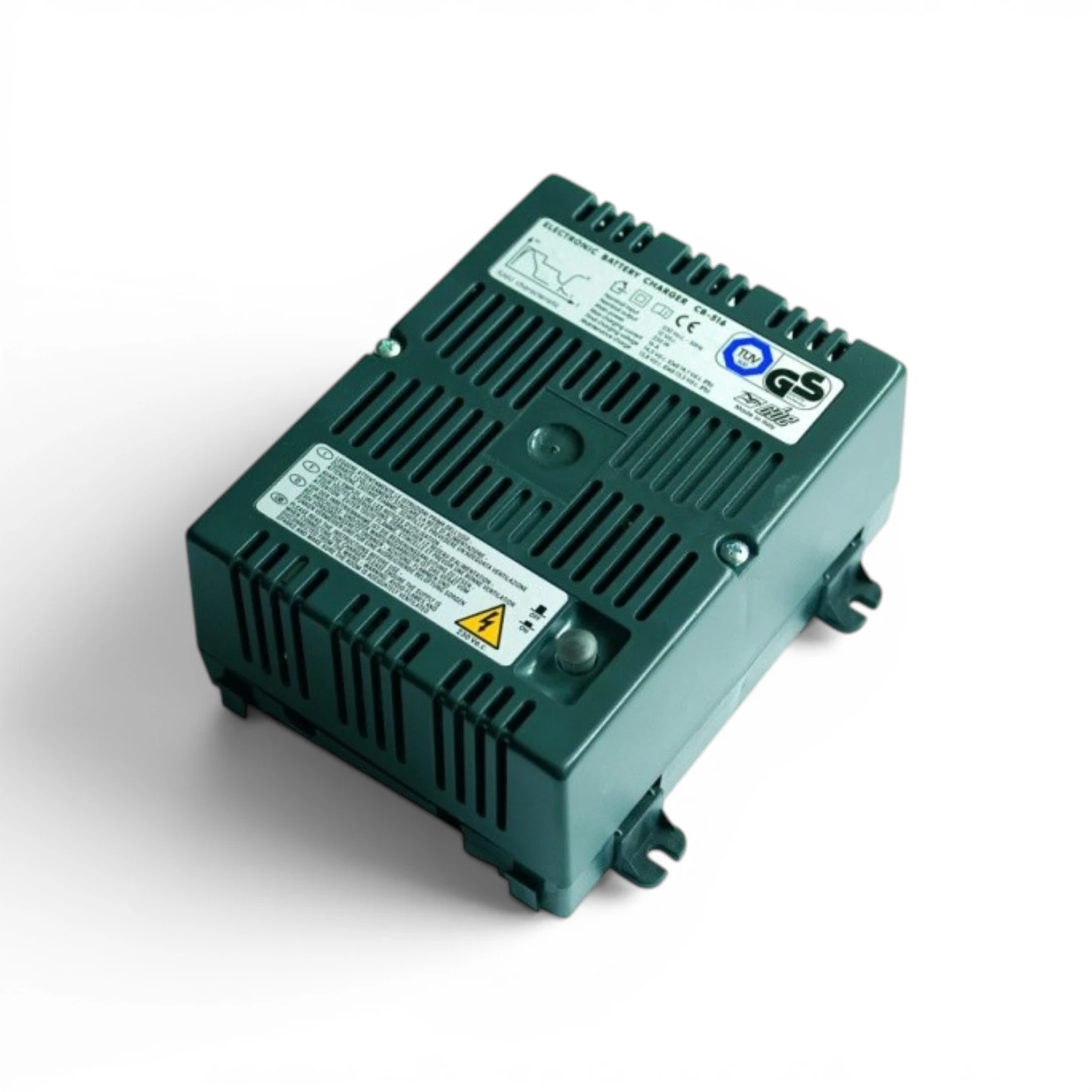

CBE 16 Amp Switch Mode Battery Charger 321516 CB516-2 230V/12V 16A
SKU
£125.00 Inc Vat
In stock
In stock
CBE 16 amp Switch Mode Battery Charger
This CBE 16 Amp Switch Mode Battery Changer can automatically charge 12v lead batteries. The battery charger is protected against overheating and the 12v outputs are protected against possible short circuits and polarity reversal. As well as this, the switching high frequency technology allows to obtain excellent performances with limited weight and dimensions.
Features:
– 16 Amp
– Battery charger is protected against overheating
– 12v outputs protected against short circuits/polarity reversal
– Switching high frequency technology
| TECHNICAL DATA | |
| Nominal input voltage | 230Vac +-10% |
| Frequency | 50 Hz |
| Max power | 250W |
| Protection fuse | 2A (5×20 glass) |
| On/Off security switch | 230V |
| OUTPUT TECHNICAL DATA | |
| Max voltage (V) | 14.3 (Lead-Gel) 14.1 (Lead-Acid) |
| Maintenance voltage (V) | 13.8 (Lead-Gel) 13.5 (Lead-Acid) |
| Max current | 16 A |
| Charging line | IUoU |
| Battery type selector | Lead-Acid / Gel |
| Short-circuit and polarity inversion protected | 25A (blade) |
| Thermal protection | YES |
| Mains signal | 12V 50mA |
| GENERAL TECHNICAL DATA | |
| Efficiency | 86 % |
| Room temperature | 0 – 50°C |
| Ventilation | Forced, automatic changing regulation |
| Protection degree | IP 30 |
| Mains connection | Plug |
| Battery connection | 6,3 terminals |
| Case | Nylon + fiber glass, self-extinguishing |
| Dimensions | 180 x 140 h85 |
| Weight | 1 Kg |
